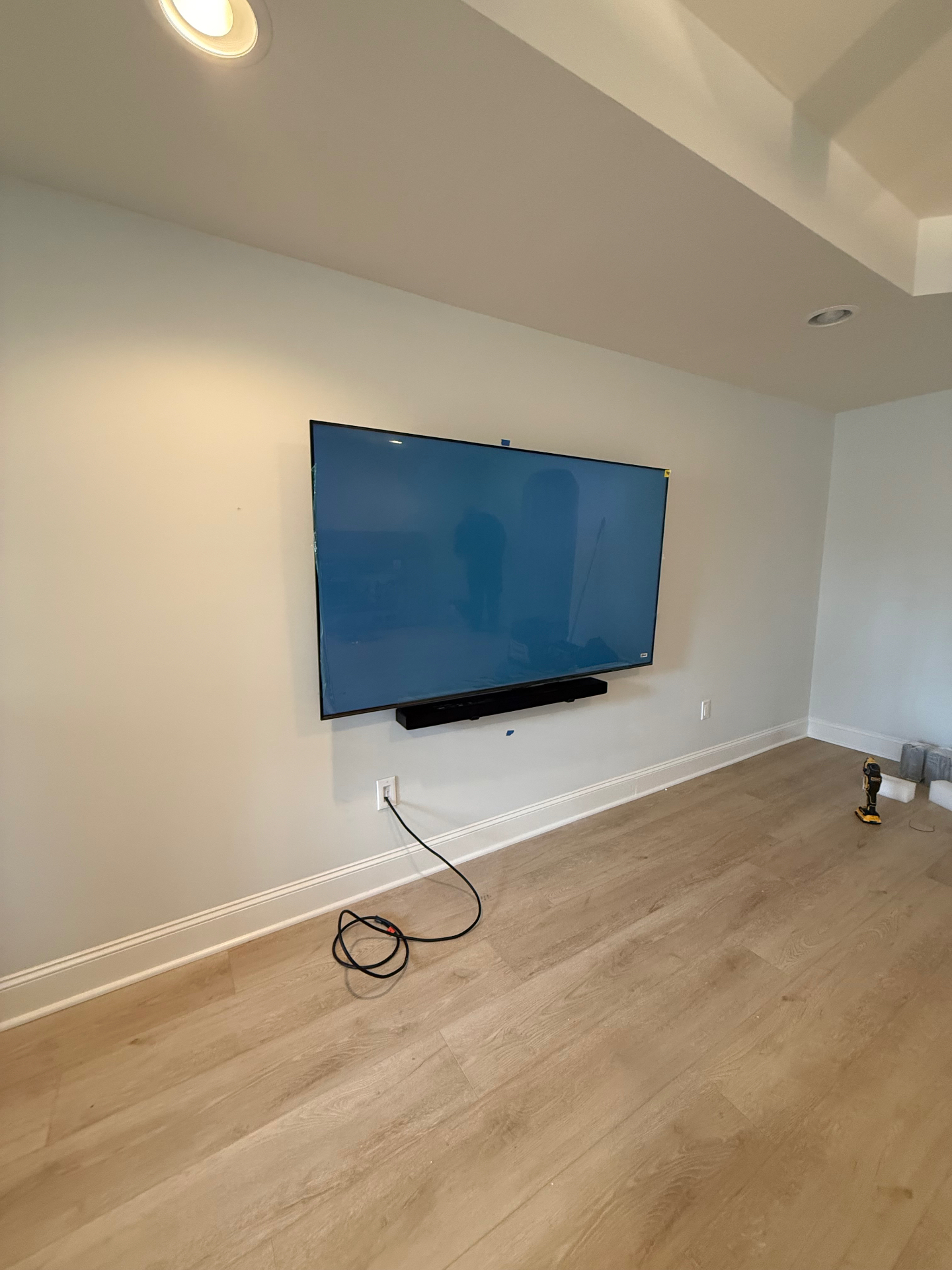

75-Inch TV Tilt Mount with Soundbar in Powder Springs, GA Living Room
Project Summary
A Powder Springs, GA homeowner requested a 75-inch TV and soundbar wall mount in their open-concept living room. The tilt mount was chosen to reduce glare from the recessed lighting above and allow slight angle adjustment for the seating area. A soundbar was mounted directly beneath the TV for integrated audio. An electrical outlet was installed at the base of the wall to power the TV and connected devices, with cables routed cleanly from the outlet up through the wall to the TV. The modern living room features light hardwood flooring and neutral walls.
Installation Details
The 75-inch TV was mounted on a tilt bracket secured into two wall studs with heavy-duty lag bolts. The screen was centered on the main living room wall at 62 inches from floor to center for optimal viewing from the sofa. The soundbar was mounted directly below the TV using a dedicated wall bracket, aligned perfectly with the screen's width. A new electrical outlet was installed at the baseboard level to provide power for the TV, soundbar, and any streaming devices. HDMI and power cables were routed through the wall cavity from the outlet to the TV.
Professional Techniques Used
Stud detection was performed to locate two solid wall studs in the mounting zone. The tilt bracket was leveled with a laser level and fastened with 3.5-inch lag bolts. The soundbar bracket was mounted into a single stud with toggle bolt reinforcement on the opposite side. A new 20-amp electrical outlet was installed at baseboard height using an old-work electrical box, wired from the nearest existing circuit. A low-voltage pass-through was installed behind the TV for HDMI cable routing. All connections were tested before final TV placement.
Benefits to the Customer
The Powder Springs living room now features a professionally mounted 75-inch TV with a sleek soundbar delivering rich audio directly below the screen. The tilt mount allows the homeowner to angle the TV slightly downward for glare-free viewing from any seat in the room. The new electrical outlet at the base of the wall provides a clean power source without extension cords or visible wiring. The complete installation transforms the main living wall into a modern entertainment focal point with a polished, wire-free appearance.
TV Size
75"
Mount Type
Tilt
Wall Type
Drywall
Location
Powder Springs, GA
